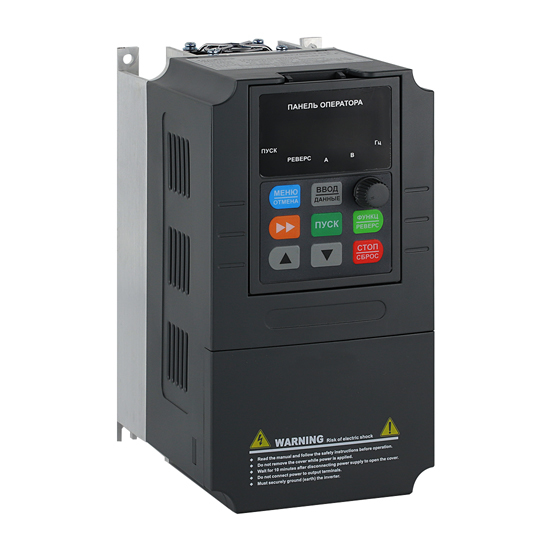

1.5 kW Single Phase Output Frequency Inverter

1.5 kW Single Phase Output Frequency Inverter

$243.08
| 5 review(s) | Add your review
1.5kW 2 hp single phase output frequency inverter with favorable price, Rated current 9.6A, output frequency 0~ 1000Hz. 1-phase 220v, 230v, 240v 50 Hz/60 Hz input, single phase 0-220v output. Equipped with a cooling fan, the variable frequency inverter shell is made of solid material and has good heat dissipation performance. The single phase inverter can work at (-10℃, 40℃), and the LED screen can monitor value changes in real-time.
Free shipping
Delivery date: 3-10 days
SKU: GK3000-1S0015
increase decrease
Overview

1.5kW variable frequency inverter comes with LED display, start frequency 0.40Hz~20.00Hz, and speed adjustment range 1:50. The frequency drive for single phase motor inputs single phase 220-240v for home use, output 1 phase 220V 0-400 Hz for single phase motor.


Feature

  1. With high safety performance, the inverter 1.5kw has multiple fault protections such as overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, short circuit, etc.
  2. Display frequency setting, output frequency, output voltage, and output current can all be displayed on the LED display.
  3. The variable frequency drive inverter can work at (-10℃, 40℃), and its operation command methods include keyboard control, terminal control, and serial communication control.
  4. The frequency drive inverter is equipped with a panel speed control knob, and the data can be adjusted by itself.

Details

Thermal air vent

Air Vents

The 2 hp single phase inverter is equipped with multiple vents and built-in cooling fans to keep the temperature inside the inverter stable. An internal cooling fan cools the drive's internal components and forces air circulation to accelerate heat dissipation.
Heat sink aluminum sheet

Aluminum Sheet

The heat sink aluminum sheet of the frequency inverter 1.5kw is a necessary heat dissipation material, which is used to regulate the internal temperature of the inverter, protect the circuit board from heat damage, and ensure the normal operation of the inverter.
Digital display of frequency inverter

LED Display

The LED screen of the 2ph variable frequency drive inverter can display the real-time running status to make parameter setting and data adjustment, provide some fault information to prevent damage to the frequency drive for single phase motor, and then prolong the service life of the 2hp inverter.

Applications

Power industry

Power Industry

Oil extraction

Oil Extraction

Chemical industry

Chemical Industry

Transportation

Transportation Area

Specs
Basics Model GK3000-1S0015
Capacity 1.5 kW (2 hp)
Shipping weight 3 kg
Dimension 124.8*78*148.4 mm
I/O Feature Rated current 9.6 A
Input voltage single phase AC 220V±15%
Input frequency 47~63Hz
Output voltage 1 phase 0～rated input voltage
Output frequency 0~1000Hz
Over load capacity 150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features Control mode V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
Operation command mode Keypad control, Terminal control, Serial communication control
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
Start frequency 0.40Hz~20.00Hz
Speed adjustment range 1:50
Carrier frequency 1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
Frequency accuracy Digital setting: 0.01Hz
Analog setting: Maximum frequency * 0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0%
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
Jog operation Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Common DC bus Common DC bus for several VFDs, energy balanced automatically
Torque control Torque control without PG
Torque limit "Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals Input terminals Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI:
AI1: 0～10V or 0/4～20mA
A12: 0～10V or 0/4～20mA
Output terminals 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output)
2 relay output
2 analog output: 0/4~20mA or 0~10V
Communication terminals Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output frequency, output voltage, output current, etc.
Multifunction key QUICK/JOG key, can be used as multifunction key
Environment Ambient temperature -10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: Output rated power, ＞1000M: Output derated
Storage temperature -20℃～60℃

Note:

  1. The single phase motor should not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.
  2. Our frequency inverter cannot be used as a power source, it can only be directly connected to an induction motor to control the motor speed.
  3. This frequency inverter does not control the reverse operation of the motor, if you want to reverse operation, please refer to the motor nameplate instructions.
FAQ

How does a single-phase frequency inverter work?

  • Input power rectification: The variable frequency drive inverter convert the input AC power into DC power through the rectifier circuit. This is usually accomplished using a bridge rectifier circuit, which converts the positive and negative poles of the AC power supply into DC.
  • Filter circuit: Add a filter circuit to the rectified DC power supply to reduce the pulsating components in the power supply through capacitors and other components to ensure that the subsequent 1.5kW inverter circuit can work stably.
  • Inverter circuit: Convert filtered DC power into AC power with adjustable frequency through the frequency inverter. Inverters usually use bidirectional switching devices, such as thyristors, thyristors, etc., to change the frequency of the output power supply by controlling the on and off of the switching devices.
  • The single-phase inverter achieves precise control of the single-phase motor through the above steps, thereby adjusting the speed, torque, and other parameters of the motor. This control method can achieve smooth speed regulation of the motor, improve energy efficiency, and reduce equipment losses.
Write your own review
*
*
Existing reviews
Quiet 1.5 kW single phase output frequency inverter
The 1.5 kW single phase output frequency inverter itself seems well made. Fit and finish is excellent. It's been working consistently now for 4 or 5 hours of operation. So far, very quiet, very reliable!
Shaun King | 11/19/2024 12:21 AM
Was this review helpful? Yes No (0/0)
A solid and reliable 1.5kw single-phase output frequency inverter
I got the 1.5kw single-phase frequency inverter and it's been awesome. The price was great, and it handles everything I need with a 9.6A rated current and 0-1000Hz output frequency. The cooling fan and solid build keep it from overheating. The LED screen is super handy for monitoring changes in real time. Works well in various temperatures too.
Dunn Isabel | 6/26/2024 7:37 PM
Was this review helpful? Yes No (0/1)
User-friendly to install and use
The single-phase output simplifies installation and usage. It's ideal for users who require a straightforward and easy-to-understand electrical setup. The inverter's user-friendly design is a notable feature for those looking for hassle-free operation.
Kieran lusion | 10/30/2023 9:26 PM
Was this review helpful? Yes No (0/1)
I am looking for a frequency inverter
I am looking for some assistance to wiring a PLC to a frequency inverter for motor control. I watched the following video that you have controlled the motor by the PLC program.
Nischal Nischal | 12/13/2021 2:11 AM
Was this review helpful? Yes No (0/1)
Responded by inverter.com
ATO frequency inverter has a corresponding connection terminal to connect to the PLC analog signal input signal (4-20ma, 0-10V), you can view the video on for details https://www.youtube.com/watch?v=STnfr -ZoGWQ&list=PLlo8RulDRnthBFbP4ydheukDSKw2hAfDn&index=7, and the relay terminal TA/TB/TC of the VFD output can be connected to your PLC.
Looking forward to hearing from you.
Use of 1.5kW single phase output inverter
Could we use your 1.5kW frequency inverter with solar and battery power?
Bryan Bryan | 8/10/2021 8:06 PM
Was this review helpful? Yes No (0/1)
Responded by inverter.com
No, our 1.5kW frequency inverter can not be used with batteries, nor solar, it can be used for AC supply only.
