300 watt solar on grid inverter, grid tie inverter, pure sine wave output, converts 12V/24V DC to 120 AC, 48V DC to 230V AC is optional. Grid tie solar inverter with high performance MPPT and APL functions, simply connect the solar power inverters to solar panel system. This type of solar pv inverter often used in residential solar power system, battery energy storage system and wind power system.
High performance solar grid tie inverter is 500 watt AC output power with low price, pure sine wave, 12 volt/ 24 volt DC voltage input to 110 volt/ 230 volt AC output, precise MPPT and APL functions are adopted. The on grid inverter automatically adjusts the solar panels of max output power, do not need to connect the battery. The temperature of this grid tie pv inverter can be used between -25 ℃ to 60 ℃.
Good price and high quality 600 watt grid tie inverter is a compact unit, which directly converts 12V/ 24V/ 48V DC into 120V/ 240V AC for 28V-40V solar panels appliances. Smart grid tie solar inverter features maximum power point tracking and power automatically locked functions, making efficiency higher than 99%. Synchronous high-frequency modulation with grid tied pv inverter, reduces switching losses.
1000W grid tie inverter price is reasonable, smart and compact, pure sine wave waveform output, APL functions, converts 12V/ 24V DC to 110V AC 50Hz/ 60Hz automatically, 48V DC to 220V AC inverter is available. Simply connect the solar panel directly to the on grid inverter, no need to connect the battery again. The waterproof grade of the inverter grid tie 1000W is IP23, and the installation mode is wall hanging.

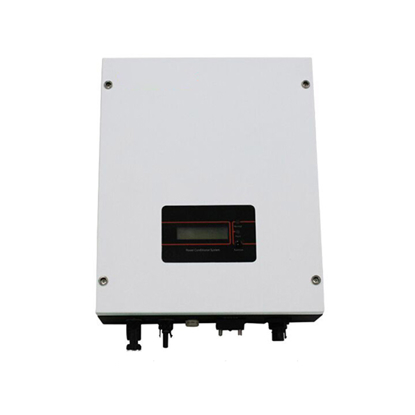

Good price 180-450V DC to 230V AC single phase grid tie inverter for home solar power system. On grid inverter comes with 1500 watt AC output power, max DC input power up to 1600 watt, LCD display, convenient for the user to monitor main parameters, transformerless compact design, high efficient MPPT to 99.5%. 1.5 kw grid tie inverter often used in solar farm and rural electrification.
Factory price on grid tied solar inverter with 2000W power capacity, max input power to 2300W, one phase output, LCD display data. 2kw grid tie inverter with wide MPPT voltage 180-450V DC and max efficiency up to 99.5%, optimizes the power output from solar panels, default 230V AC (190~270V) output, 110V for optional. The cooling method of solar on grid inverter is natural cooling.
High quality and reasonable price 3000 watt auto 180-500V DC to single phase 190-270V AC sine wave on grid power inverter for solar energy system, operates in 50Hz / 60Hz low frequency, creative MPPT tech makes efficiency higher than 99%, reduces energy costs. 3kw grid tie inverter without insulated transformer design, strong IP65 protection, preventing any harm to the internal components.
High efficiency MPPT no isolated transformer type solar grid connected inverter with 4000 watt rated capacity, max power to 4200 watt. Wide DC input voltage range of 180-500 volt and default 1-phase AC output of 230 volt, LCD display main parameters in single phase grid tie inverter, perfect electrical protection function. Wind power generation and solar panel power generation often use grid tie power inverter.
Single phase 5000 watt sine wave on grid inverter operates at 50Hz/60Hz low frequency, transformerless design, with wide input voltage 180-500V DC and output 230V (190-270) AC. IP65 protection degree of grid connected inverter, creative MPPT tech makes efficiency higher than 99%, is a perfect solution for grid tied solar power system. Storage temperature of 5kw grid tie inverter between -20 ℃ to 60 ℃.
DC 180-500V MPPT to single phase AC 230V (190-270V) on grid inverter for grid tied solar power system. MPPT grid tie inverter with 6000 watt rated power, max power to 6500 watt, no isolated transformer type, perfect protection functions, LCD displays, clearly to know the status. The protection degree of 6kw on grid solar inverter is IP20 and the operation temperature between -10 ℃ to 40 ℃.
Cheap price PV system grid tied solar inverter for sales, featuring with 7000 watt high power rating, single phase pure sine wave output. PV grid connected inverter with DC input voltage up to 500V, 220V/ 230V output or other voltages customized, maximum efficiency of 97%, transformerless, LCD display, internal DC switch, compact design. The cooling method of on grid tie inverter is cooling fan.
Affordable price 8000 watt high power capacity grid tie inverter for sale online. On grid power inverter comes with wide MPPT range, max input voltage to 500 volt, default one phase 230 volt / 240 volt AC output, 5 years standard warranty, flexible communication connection, supports RS485C / RS232 or WiFi. Solar on grid inverter is widely used in rural electrification and remote location.
Single phase 180-500 volt DC to 230 / 240 volt AC on grid inverter for sale. 50 Hz or 60 Hz low frequency can be chosen. 10kW rated capacity, transformerless design and high power density, LCD display main parameters. 10kw grid tie inverter with wide MPPT voltage, MPPT efficiency can reach 99.5%. Grid tie solar inverter easy to install, is a perfect solution for grid tied solar power system.
5000W three phase pure sine wave solar grid tie inverter with 200V-820V DC wide input voltage range, customized 208V/ 380V/ 480V AC output voltage to adapt to the needs of different occasions. IP65 compatible, no transformer type, 2 MPPT with various communication modes of 5kw on grid inverter. The storage temperature of this 3 phase on grid solar inverter between -20℃ to 60 ℃.
Cheap 10000 watt grid tie inverter with 3-phase 4 line for sale online, 10000 watt power capacity, works at 50Hz / 60Hz low frequency, 2 independent MPPT trackers guarantee optimal energy production for every use, DC 200-820 volt wide input voltage range. The maximum converssion efficiency of on grid solar inverter 10kw is 98%. Solar grid connected inverter often used in communications and transportation field.
15kW transformerless grid tie inverter for three phase on grid solar power system, which converts 200-820V wide DC input voltage to 208V/ 240V/ 380V AC output voltage feed the power into the grid. Grid tied pv inverter with LCD display, can set main general parameters. The current THD at rated power and in the sine wave＜3.5%. Multiple grid connected inverters can be operated in parallel.

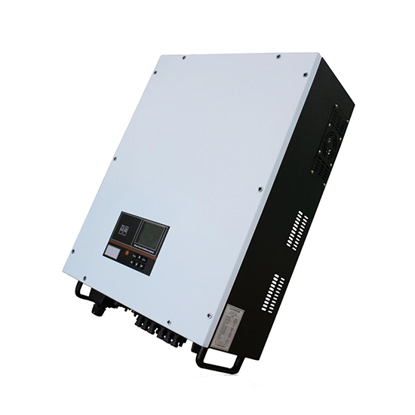

Pure sine wave 20kW rated power grid tie solar inverter with competitive price and excellent quality, 2 MPPT, maximum input voltage to 850V, three phase 240V/ 380V/ 460 AC rated output voltage. The protection degree of 20kw grid tie inverter is IP65. MPPT efficiency can reach 99.5% and with perfect self-detection and self-protection function. 3 phase on grid solar inverter is a good choice for home or industrial use.

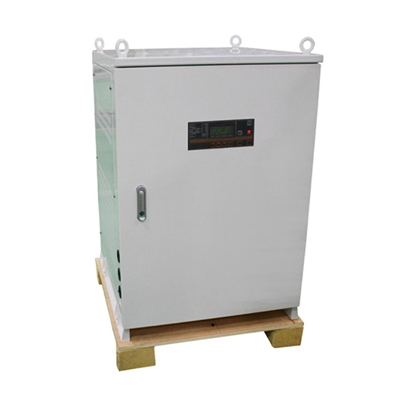

Three phase grid tie inverter price is reasonable, with 25kW power capacity, two MPPT, pure sine wave output. On grid tie inverter adopts wide DC input range of 200-820V and wide AC output range of 208-480V to adapt to the needs of different occasions. The noise of 240V grid tie inverter no more than 50db. Strong networking, flexible to support RS485, RS232, WiFi communication modes are the key points of grid connected inverter.
Quality 30kW on grid tie solar inverter converts 200-820V DC to 3 phase 208V-480V output voltage, supports 2 high efficiency MPPT tracking inputs. Grid tie inverter 3 phase adopts with transformerless design, LCD display, convenient for the user to monitor main parameters and configure. Three phase grid tie inverter suitable for medium or large-scale grid-tied PV system and industrial automation.
Transformerless solar on grid inverter with 40kW high power and max power up to 43000 watt. On grid tie inverter adopt swith 200-820V DC wide input to three phse 208V-480V AC wide output, 2 MPPT, optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency, creative MPPT tech makes efficiency higher than 99%. Three phase grid tie inverter often used in irrigation system and new energy field.
On grid inverters / Grid tied inverters series from inverter.com are compact size, which directly convert direct current into alternating current for powering appliances and / or office equipments and connecting to utility grid. Its primary function is to convert the direct current (DC) generated by solar panels into alternating current (AC), which is the standard form of electricity used by household appliances and the electrical grid.
Grid connected inverter is a crucial component in solar power systems that integrate with the electrical grid. For series of 300 watt to 1000 watt rated power inverters, feature with pure sine wave output, no battery design, wide DC input (20V-50V DC) and AC output (90-140V AC / 180-260V AC) range.
For single phase 1500W to 10kW inverters and three phase 5kW to 50kW inverters, feature with LCD dispaly, transformerless type, multiple inverters can be operated in parallel. All grid tie inverters built-in high performance maximum power point tracking (MPPT), MPPT efficiency more than 98%. Grid on inverter is integral to optimizing solar energy usage, reducing electricity bills, and promoting renewable energy integration into the broader power grid. Buy an on grid inverter for your solar panel now!
How does grid connected inverter work?
For single phase grid on inverter, this type of solar inverter converts direct current (DC) from solar panels into alternating current (AC) that matches the voltage, frequency, and phase of the electrical grid. It uses maximum power point tracking (MPPT) to optimize the energy harvest from solar panels. The inverter synchronizes with the grid frequency using a phase-locked loop (PLL) and ensures that the AC output is in phase with the grid. Excess energy generated is fed into the grid, while an anti-islanding protection mechanism ensures it shuts down during grid outages to protect utility workers and equipment.
The working principle of the three phase grid connected inverter is to convert direct current into alternating current through electronic components. In photovoltaic or wind power generation systems, the direct current generated by photovoltaic panels or wind turbines enters the three-phase inverter through the conversion device of DC and AC. The inverter converts the input direct current into alternating current with a phase interval of 120 degrees between each other, and connects it to the main grid with the same voltage. The inverter will automatically adjust according to the voltage and frequency of the main grid to achieve effective grid connected power supply.
