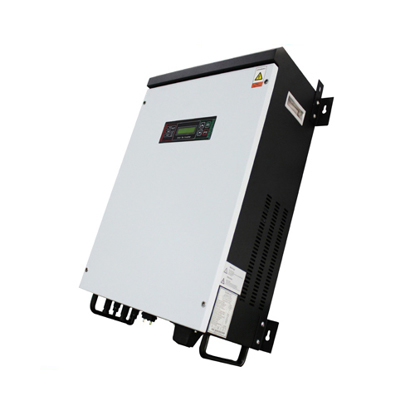

7000W Single Phase Grid Tie Solar Inverter

$1,814.36

| 2 review(s) | Add your review

Cheap price PV system grid tied solar inverter for sales, featuring with 7000 watt high power rating, single phase pure sine wave output. PV grid connected inverter with DC input voltage up to 500V, 220V/ 230V output or other voltages customized, maximum efficiency of 97%, transformerless, LCD display, internal DC switch, compact design. The cooling method of on grid tie inverter is cooling fan.

Free shipping

Delivery date: 6-12 days

SKU: ATO-GTI-7000

Output Voltage *

With WiFi Module

Yes [+$154.96]

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

One phase 180-500V DC to 230V/ 240V grid tie inverter for on grid solar system. ("single-phase" specifies that it is designed to handle a single alternating current waveform, commonly used in residential and small commercial applications.) Wide input voltage range and high efficient MPPT up to 99%, with cooling fan. Single phase on grid inverter also with RS 485C / RS 232 / WiFi module options of communication interfaces, perfect electric protection functions.

Features:

LCD display, convenient for the user to monitor main parameters of grid tie inverter.
On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
Strong IP65 protection, completed sealed cover suitable for harsh environment.
On grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
Multiple inverters can be operated in parallel and support various communication modes.
Advanced MPPT tracking technology, wide MPPT voltage range, optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.

Details:

Cooling Fan

It enhances heat dissipation, ensuring the solar on grid inverter operates within optimal temperature ranges, which prolongs its lifespan. Effective cooling prevents thermal shutdowns and maintains consistent performance, especially under heavy load or high ambient temperatures. Additionally, it reduces the risk of overheating-related damage to sensitive components, thus lowering maintenance costs and downtime.

RS232 Interface

It provides a reliable and straightforward method for communication and data exchange with external devices like computers and monitoring systems. This interface supports long-distance communication and is cost-effective due to its widespread use and availability. RS232 allows for easy integration with various software for system diagnostics, real-time monitoring, and performance logging of grid connected inverter.

MPPT Technology

This ensures maximum efficiency and energy yield, even under varying weather conditions. MPPT enhances overall on grid tie inverter system performance, leading to higher electricity production. It also helps in maintaining grid stability and reduces losses associated with power conversion, extending the lifespan of PV systems by preventing overloading and underutilization of the panels.

Applications:

Solar Farm

Remote Location

Battery Power

Rural Electrification

Specs

MODEL	ATO-TL7000
DC INPUT	Max. DC Input Power	7600 watt
	Max. DC Input Voltage	500V DC
	Max. DC Input Current	35A
	MPPT Tracking Voltage Range	180-500V
	MPPT Tracking Number / Each Input String Number	1/2
	Power ON / OFF Voltage	200V / 100V
	Input Terminal	MC4
AC OUTPUT	Power	7000W
	Output Range	Single phase AC 190~270V Adjustable according to different countries and regions requirement.
	Rated Voltage	L+N+PE 220V/ 230V/ 240V AC
	Frequency	50Hz / 60Hz
	Phase	Single phase (L1+L2) / Spilt phase (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC
	Power Factor	1
	Maximum Current	31A
	Current THD	At rated power and in the sine wave ＜3.5%
	Max. Efficiency	97%
	MPPT Efficiency	99.5%
	Output Terminal	Connect terminals
STRUCTURE	Protection Degree	IP20
	Cooling Method	Cooling fan
	Topology	No transformer
	Noise	<50db
	Data Interfaces	RS 485C / RS232 (Standard) / WiFi Module (Optional)
	Isolation Type	Non-isolated
	Standby Power Consumption	0W
	Display	LCD dispaly
	DC Switch	Integration
	AC Switch	Integration
	Protection Functions	DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT	Operation Temperature	Air Flow, -10℃~40℃
	Storage Temperature	-20℃~60℃
	Relative Humidity	0~100%
	Altitude	2000m, max 3000m
OTHERS	Size (WHD)	The size of the inverter is different due to different specifications, please contact us to confirm.
	Weight	Single phase version: 54kg, split phase version: 108kg
	Certificate	CE / G83 / IEC / TUV / SAA
	Warranty	5 years

Manual

Single-phase Grid Tie Inverter Installation Guide

PDF Single-phase Grid Tie Inverter User Manual

FAQ

How to save money with solar system?

1. Build your home's solar photovoltaic system with a high-efficiency solar inverter and transfer your large power usage equipment to daylight hours to use the free electricity generated from the solar system. It makes sense to use as much electricity as possible during the daylight, so turn on your washing machine, dishwasher, pool filters, and other high-consumption equipment when the sun brightly shines.

2. Improve your home electrical equipment's energy efficiency and reduce electricity waste. If you go with the first opportunity "solar system construction", then, in addition, to reducing or even eliminating electricity bills you will get additional advantages from the solar feed-in tariff, which means the surplus electricity generated from your solar system and fed back/ exported to the electricity grid, as the electric utility will pay for each kilowatt hour electricity generated and fed into the grid.
