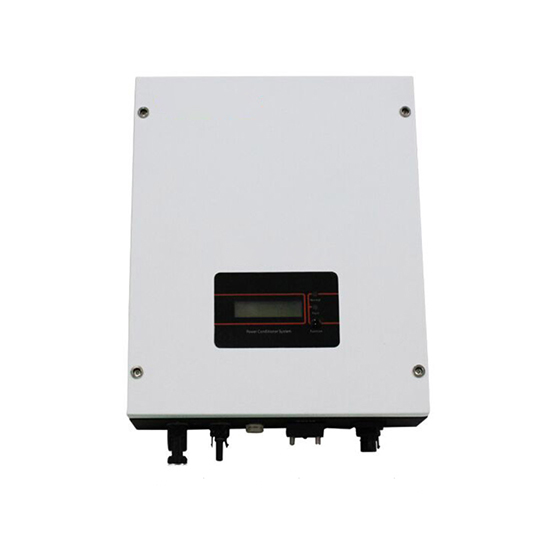

5000W Single Phase Grid Tie Solar Inverter

$1,560.15

| 3 review(s) | Add your review

Single phase 5000 watt sine wave on grid inverter operates at 50Hz/60Hz low frequency, transformerless design, with wide input voltage 180-500V DC and output 230V (190-270) AC. IP65 protection degree of grid connected inverter, creative MPPT tech makes efficiency higher than 99%, is a perfect solution for grid tied solar power system. Storage temperature of 5kw grid tie inverter between -20 ℃ to 60 ℃.

Free shipping

Delivery date: 6-12 days

SKU: ATO-GTI-5000

Output Voltage *

With WiFi Module

Yes [+$154.96]

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

A 5000W single phase grid tie solar inverter is a device that converts direct current (DC) electricity generated by solar panels into alternating current (AC) electricity. Buy 5000W high power on solar on grid inverter with low cost, max power up to 5400W, converting DC 180-500 volt to AC 230 volt or 110 volt, higher efficiency and more stable performance. Grid tie inverter also has safety features like anti-islanding, which shuts down the inverter.

Features:

LCD display, convenient for the user to monitor main parameters of grid tie inverter.
On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
Strong IP65 protection, completed sealed cover suitable for harsh environment.
On grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
Multiple inverters can be operated in parallel and support various communication modes.
Advanced MPPT tracking technology, wide MPPT voltage range, optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.

Details:

LCD Display

LCD display in a 5kW grid tie inverter, it provides real-time data monitoring, user-friendly and easy to read, presenting complex information. This transparency helps identify any potential issues and optimize system efficiency. LCD display also enhances user interaction and ensures efficient management of the grid tie inverter system.

Multiple Port

This diversification optimizes energy capture and storage, by accommodating different energy sources, the grid tie solar inverter system can optimize energy harvesting throughout the day, leading to better efficiency and output. With multiple ports, one energy source can act as a backup if another fails, ensuring continuous power supply.

IP65 Protection

It ensures complete protection against dust ingress, preventing any harm to the internal components, making the pv grid connected inverter safe for outdoor installation and resilient to rain, humidity, and other moisture sources. This durability can extend the lifespan of the inverter, reducing maintenance costs and ensuring reliable performance.

Applications:

Rural Electrification

Remote Location

Commercial Use

Solar Farm

Specs

MODEL	ATO-TL5000
DC INPUT	Max. DC Input Power	5400 watt
	Max. DC Input Voltage	500V DC
	Max. DC Input Current	26A
	MPPT Tracking Voltage Range	180-500V
	MPPT Tracking Number / Each Input String Number	1/2
	Power ON / OFF Voltage	200V / 100V
	Input Terminal	MC4
AC OUTPUT	Power	5000W
	Output Range	Single phase AC 190~270V Adjustable according to different countries and regions requirement.
	Rated Voltage	230V AC (Optional: 110V)
	Frequency	50Hz / 60Hz
	Phase	Single phase (L+N) / spilt phase 2 hot line (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC can be customized for this 5000W inverter.
	Power Factor	1
	Maximum Current	23A
	Current THD	At rated power and in the sine wave ＜3.5%
	Max. Efficiency	97%
	MPPT Efficiency	99.5%
	Output Terminal	Connect terminals
STRUCTURE	Protection Degree	IP65
	Cooling Method	Natural cooling
	Topology	No transformer
	Noise	<50db
	Data Interfaces	RS 485C / RS232 (Standard) / WiFi Module (Optional)
	Isolation Type	Non-isolated
	Standby Power Consumption	0W
	Display	LCD dispaly
	DC Switch	Integration
	AC Switch	Integration
	Protection Functions	DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT	Operation Temperature	Air Flow, -10℃~40℃
	Storage Temperature	-20℃~60℃
	Relative Humidity	0~100%
	Altitude	2000m, max 3000m
OTHERS	Size (WHD)	The size of the inverter is different due to different specifications, please contact us to confirm.
	Weight	Single phase version: 46kg, split phase version: 92kg
	Certificate	CE / G83 / IEC / TUV / SAA
	Warranty	5 years

Manual

Single-phase Grid Tie Inverter Installation Guide

PDF Single-phase Grid Tie Inverter User Manual

FAQ

On grid vs. off grid - which is the better?

On grid solar system is more flexible, you can run any load power capacity and any time you want without limitation, also with the best design, you will be able to eliminate your electricity bill over the solar system lifetime which may extend to 25 years. Moreover, you can sell extra electricity generation to the electric utility, especially in the summer months when the sun is shining most of the day with high radiation.
On grid solar system is considered an electricity generation source when it injects electricity back into the electric utility, so it’s one of the renewable energy sources which contributes to reducing carbon gas emissions and protecting the environment. It’s our duty to our earth planet!

Write your own review

Review title: *

Review text: *

Rating:

1 2 3 4 5

Existing reviews

Easy and simple to handle

I have owned this 5000W single phase grid tie solar inverter for seven months. It works almost exactly as described and it works well in winter or summer. The operation is also very simple. I will order more.

From: Keran Harris | Date: 6/13/2024 3:00 AM

Was this review helpful? Yes No (0/0)

Hope this grid tie inverter play its performance

I've been using this inverter for eight months now, problem-free. I liked this grid tie inverter 5000 watt enough that I bought a second one and installed it for my parents. I hope this product can play its performance well.

From: Jacob Smith | Date: 5/8/2024 7:23 PM

Was this review helpful? Yes No (0/0)

Recommend this 5000W grid tie inverter

As with many of my reviews this is my personal opinion none of my reviews are compensated in any way shape or form. This 5000W single phase grid tie solar inverter works great, the quality is good and the features are pretty awesome. It has indicators for every function, a hard to find feature and even harder at this price point, very impressive. The seller customer service is outstanding! I recommend this product.

From: Andrew Woods | Date: 12/10/2019 6:52 PM

Was this review helpful? Yes No (0/0)
