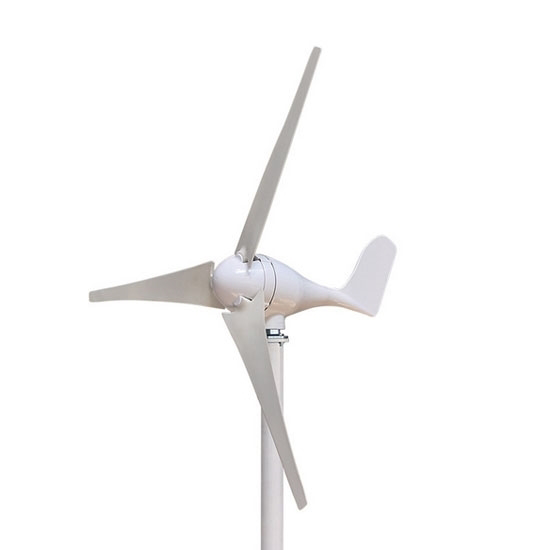

100W Horizontal Axis Wind Turbine, 12V/24V

100W horizontal axis wind turbine with 3/5 blade number and nylon fiber material. It has three three-phase permanent magnet AC generators, casting aluminum alloy, electromagnet controller system. The wind adjustment is automatically adjusted to windward.

Feature:

1. Low starting wind speed, beautiful appearance, and low running vibration.
2. Using humanized flange installation design, convenient installation, and maintenance.
3. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
4. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
5. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
6. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

Specification:

Dimension:

100W Wind Turbine Power Curve:

100W Wind Turbine (Flange Seat) Exploded View:

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Power Curve:

Tips: How Do Wind Turbines Work?

• A wind turbine turns wind energy into electricity using the aerodynamic force from the rotor blades, which work like an airplane wing or helicopter rotor blade.
• When wind flows across the blade, the air pressure on one side of the blade decreases. The difference in air pressure across the two sides of the blade creates both lift and drag.
• The force of the lift is stronger than the drag and this causes the rotor to spin. The rotor connects to the generator, either directly (if it’s a direct drive turbine) or through a shaft and a series of gears (a gearbox) that speed up the rotation and allow for a physically smaller generator.
• This translation of aerodynamic force to the rotation of a generator creates electricity.
