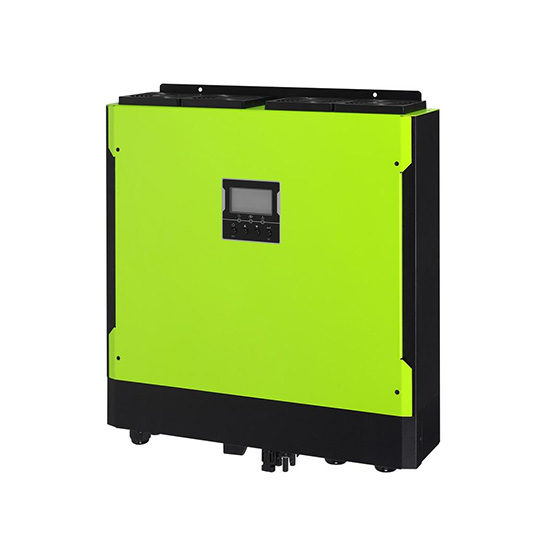

3kW Hybrid Solar Inverter

$1,391.30

| 9 review(s) | Add your review

Low price hybrid solar inverter online for sale. On off grid hybrid solar inverter with rated power 3000 watt, MPP voltage range 250V-450V DC, maximum input current 18A, output frequency 50Hz - 60Hz, LCD displays, clearly to know the status. 3kW hybrid inverter plays an important role in solar energy system.

Free shipping

Delivery date: 40-45 days

SKU: ATO-HSI-3kW

increase decrease

Overview
Specs
FAQ
Reviews

Overview

High efficiency hybrid 3000W PV inverter with 3000W rated power, wide DC input voltage range of 360-500 volt and default 1-phase AC output of 208/220/230/240V, higher efficiency and more stable performance. 3 kW hybrid inverter combines the functionality of a traditional solar inverter with that of a battery storage system, enabling the integration of solar energy generation with energy storage capabilities.

Features:

Combine power for self-use and grid connection.
The priority supply sequence of solar, battery power and city power can be set. It can synchronize with the electrical grid to either export excess power generated by the solar panels or to draw power from the grid when solar production is insufficient.
The charging current can be adjusted according to a variety of battery types.
Optional modes. grid-connected mode, off-grid mode and grid-connected energy storage mode. Grid-connected mode excess solar power is fed back into the grid to offset energy consumption, while also enabling battery backup functionality for critical loads during grid outages.
The built-in timer in hybrid inverter can set the machine on/off time.
The LCD panel of hybrid solar inverter can display various detailed information.
Configure multiple communication ports.

Details:

Multiple Communication Ports

Hybrid solar inverter equipped with multiple communication ports that enhance their functionality and adaptability in renewable energy systems. This facilitates seamless integration and coordination between different components of the system, optimizing overall performance and efficiency.

LCD Display

LCD display provides clear and concise information about power generation, consumption, and system status of off grid hybrid inverter, aiding users in monitoring and managing energy usage effectively, empowering users to make informed decisions for better energy management.

Dust Cover

By preventing accumulation on sensitive components, dust covers enhance the longevity and efficiency of the 3kW hybrid inverter, reducing maintenance requirements and potential malfunctions. contribute to maintaining optimal performance levels by minimizing the risk of overheating or electrical issues caused by dust infiltration.

Applications:

Photovoltaic Power Generation

Agriculture Industry

Home Appliance

Street Lighting

Specs

Model		ATO-HSI-3kW48-230
Rated Power		3000W
PV INPUT (DC)	Maximum DC Power	4500W
	Nominal DC Voltage	DC 360V
	Maximum DC Voltage	DC 500V
	Start-up Voltage / Initial Feeding Voltage	116V/150V
	MPP Voltage Range	DC 250V-DC 450V
	Maximum Input Current	18A
	Isc PV (absolute maximum)	18A
	Max. inverter back feed current to the array	0A
GRID OUTPUT (AC)	Nominal Output Voltage	AC 208/220/230/240V
	Output Voltage Range	AC 184V-265V
	Output Frequency Range	47.5-51.5Hz~59.3-60.5Hz
	Nominal Output Current	13A
	Inrush Current/Duration	17A
	Maximum Output Fault Current/Duration	51A
	Maximum output Overcurrent Protection	51A
	Power Factor Range	0.9 lead - 0.9 lag
AC INPUT	AC Start-up Voltage	AC 120V-140V
	Auto Restart Voltage	AC 180V
	Acceptable Input Voltage Range	AC 170V-280V
	Nominal Frequency	50Hz / 60Hz
	AC Input Power	5100VA / 5100W
	Maximum AC Input Current	30A
	Inrush Input Current	30A
BATTERY MODE OUTPUT (AC)	Nominal Output Voltage	AC 208/220/230/240V
	Output Frequency Range	50 Hz / 60 Hz (auto sensing)
	Output Waveform	Pure sine wave
	Output Power	3000VA/3000W
	Output Current	14.4A/13.6A/13A/12.5A
	Efficiency (DC to AC)	92%
BATTERY & CHARGER (Lead-acid/Li-ion)	Nominal DC Voltage	DC 48V
	Maximum Battery Discharging Current	92A
	Maximum Charging Current	25A
GENERAL PHYSICAL	Dimension, DWH (mm)	480438117
GENERAL PHYSICAL	Net Weight (kgs)	15.57
INTERACE	Communication Port	RS-232/USB
INTERACE	Intelligent Slot	Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT	Protective Class	I
	Ingress Protection Rating	IP20
	Humidity	0 ~ 90% RH (No condensing)
	Operating Temperature	0 to 40°C
	Altitude	0-1000m*

FAQ

What are the tips for selecting 3kW hybrid solar inverter?

There are 4 tips to consider when selecting the proper hybrid solar inverter.

The hybrid solar inverter output voltage and frequency. This will base on your load requirements and usually its same as your country standard supply voltage/frequency.
The inverter power ranging. The hybrid solar inverter comes in size ratings all the way from 50 watts up to 50,000 watts, although units larger than 11,000 watts are very seldom used in household or other PV systems.
Inverter output wave form. There are 3 major types of inverters – sine wave (sometimes referred to as a “true” or “pure” sine wave), modified sine wave (actually a modified square wave), and square wave.
Efficiency. This is a measure of how much power from the batteries your inverter delivers to your home when it’s operating in perfect conditions. A good peak efficiency rating is around 94% to 96%.
