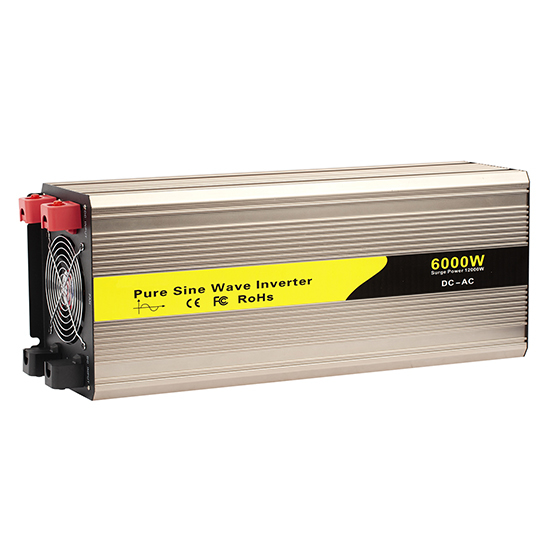

48V 6000 Watt Pure Sine Wave Inverter

$1,756.86

$1,109.05

PRICE BREAKS - The more you buy, the more you save

Quantity

10+

50+

Discount

3% OFF

4% OFF

5% OFF

| 4 review(s) | Add your review

6000 watt pure sine wave inverter with wired/ wireless remote control, provides mobile power for all kinds of electrical appliances and appliances for your car. Not only for car, pure sine wave inverter for home also common. The storage temperature of pure sine power inverer between -30 ℃ to 70 ℃. 48 volt DC to AC 110V/220V/100V/230V, 50/60Hz output frequency can be chosen.

Free shipping

Delivery date: 6-12 days

SKU: ATO-PSWI-60004

Output Voltage (V) *

Output Socket *

Input Battery Type *

LCD Display

Yes [+$6.80]

Remote Control

Wired Control [+$15.38]
Wireless Control [+$18.69]

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

48V pure sine wave inverter 6000W, peak power 12000W, AC output can select 110V, 220V, 240V, 100V, with digital LCD display. Pure sine wave ensures compatibility and minimizes the risk of damage or interference that can occur with modified sine wave or square wave inverters.

Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.

Features:

Intelligent integrated circuit control. Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
Imported parts. The pure sine wave inverter materials are imported components, and the panel uses double-sided circuit boards to ensure high quality and high performance of the products, and to match the excellent quality of the detailed molds.
Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.

Details:

Large Intellengent Cooling Fan

Optimize energy consumption by adjusting fan speed based on temperature, enhancing efficiency. Intelligent cooling fan in 6000 watt pure sine wave power inverter ensures quieter operation compared to traditional fan, enhancing user comfort. It contributes to environmental sustainability by reducing energy waste and emissions.

Aluminium alloy housing

Aluminium's excellent thermal conductivity facilitates efficient heat dissipation, enhancing the inverter's performance and lifespan. its corrosion resistance ensures longevity even in harsh environments. Thermal efficiency, and environmental friendliness, making it an optimal choice for pure sine wave inverter.

Quality Capacitor

High quality capacitors have better heat dissipation properties, leading to improved reliability and longevity of the 48V pure sine inverter system. they contribute to lower electromagnetic interference, resulting in cleaner power output and reduced interference with other electronic equipment, thus enhancing overall performance.

Applications:

Pure sine power inverter applications

Specs

Model	ATO-PSWI-6000
Output Power	6000 Watt
Peak Power	12000 Watt
Input Voltage	DC 48V
Outlet Type	Universal socket 2, US Socket 4
Terminal Output Interface	*1
Input Voltage	DC 48V (40-61V)
Output Voltage	1- Phase (L + N, G)= 110V, 230V ±5% Do Not provide split phase configuration (L1, L2 + N, G)
No-load Current (less-than)	≤0.3A
Output Frequency	50Hz or 60Hz
Output Wave	Pure Sine Wave
Waveform Distortion	THD≤3%
USB Port	5V, 1A
Max Working Efficiency	95%
Undervoltage Protection	First alarm (breaking alarm sound is one), LED red light flashes, voltage continues to decrease and shut down
Overload Protection	Continuous alarm, LED flashing red, off
Over Temperature Protection	First alarm (broken alarm sound is two), the temperature continues to rise, LED red light flashes and turns off
Short Circuit Protection	Short circuit protection without breaking the circuit
Reverse protection	Fuse blown
Undervoltage Alarm Range	42±1V
Undervoltage Protection Range	38±1V
Overvoltage Protection Range	61±1V
Undervoltage Recovery Range	48±1V
Overvoltage Recovery Range	54V±1V
Operating Temperature	-10℃~ +50℃
Cooling Way	Built-in intelligent cooling fan
Warranty	12 Months
Storage Temperature	-30℃~ +70℃
Humidity	≤90%, non-condensing
Dimensions (WHD)	570mm200mm160mm
Gross Weight	10kg
Accessories	4 Pure copper connection wires + 6 spare fuses
Display Type	LCD Display

Dimension (Unit: mm)

Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).

Pure Sine Wave Inverter Remote Control LCD Display (Optional)

Pure sine wave power inverter is available with remote control: wired control and wireless control.
LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.

Manual

Pure Sine Wave Inverter User Manual

FAQ

How do I know if my inverter is a pure sine wave inverter?

Output Waveform Analysis: Pure sine wave inverters produce an output waveform that is smooth and continuous, closely mimicking the waveform of utility power. Use an oscilloscope to check the output waveform, connecting the oscilloscope probes to the output terminals of the inverter. Turn on the inverter and examine the waveform displayed on the oscilloscope to observe the waveform. A pure sine wave will appear as a smooth curve without any sharp edges or distortions, in contrast to modified sine wave inverters which produce a more stepped waveform.
Appliance Compatibility: Certain sensitive electronic devices require a pure sine wave for proper operation. These devices include medical equipment such as CPAP machines and other critical health devices; variable speed motors, found in some power tools and appliances; and audio equipment, including high-fidelity audio systems and recording equipment. If these devices operate correctly without issues when connected to your inverter, your inverter likely produces a pure sine wave. Modified sine wave inverters can cause malfunctions, noise, or inefficiencies in these sensitive devices.

By analyzing the output waveform with an oscilloscope and testing the compatibility with sensitive electronic devices, you can confidently determine whether your inverter is a pure sine wave model. Ensuring you have a pure sine wave inverter is essential for the optimal performance and longevity of your electronic equipment.
