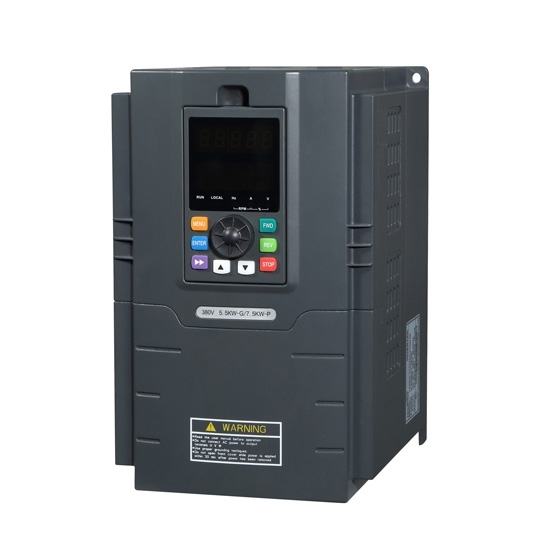

7.5 kW Frequency Inverter, 3 Phase 208V, 400V, 480V

$463.25

| 2 review(s) | Add your review

7.5kw variable frequency inverter, 3 Phase 230V, 380V, 460V, RS485 communication mode. The frequency drive inverter has V/F control and sensorless vector control, and the start torque is 150% of the rating torque at 1 Hz. Equipped with a cooling fan and protected by an IP20 casing, the 3 phase variable frequency drive is made of solid material and has strong impact resistance. Stable performance and easy to install.

Free shipping

Delivery date: 3-10 days

SKU: GK3000-4T0075G

Input Voltage (Three Phase) ±15% *

increase decrease

Overview
Specs
FAQ
Reviews

Overview

10 hp frequency inverter, 3 phase inverter 13A at 380V ~ 480V, 25A at 220V ~ 240V. With IP 20 enclosure protection, the variable frequency drive inverter has a cooling fan to keep the interior suitable temperature., suitable for motors, fans, pumps, etc.

Feature

The 3 phase inverter with V/F and Sensorless vector control can provide a standard RS485 communication port. The host computer (PC/PLC) can monitor the inverter in the control system and realize complex control functions such as remote control and fine adjustment.
The variable frequency drive inverter local control panel and remote control panel can work at the same time.
Equipped with RS485 communication mode, the variable frequency inverter has a cooling fan to disperse the internal temperature and prevent damage to internal components.

Details

Multiple Function Keyboard

The multiple-function keyboard of the three phase frequency inverter controls the operation of the variable frequency drive inverter, such as start, stop, and acceleration. You can press the corresponding buttons to make the 3 phase variable frequency drive work according to the set inverter parameters or control the inverter machine's operating speed.

Electronic Screen

The electronic screen of the frequency drive inverter is a key component in the control system, providing users with an intuitive and real-time information display. The electronic screen can monitor the operating status of the 7.5kw 3 phase variable frequency drive in real-time, including input and output voltage, and current waveform, which helps to detect abnormal conditions in time.

Rugged Casing

The 10hp variable frequency inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The 3 phase variable frequency drive not only protects the internal circuits and components but also provides safety protection.

Applications

Car Manufacturer

Ship Operation

Energy Generation

Building Construction

Specs

Basics	Model	GK3000-4T0075G/ GK3000-2T0075G
	Capacity	7.5 kW (10 hp)
	Shipping weight	6.5 kg
	Dimension	280181183 mm
I/O Feature	Rated current	17A at 380V ~ 480V, 32A at 220V ~ 240V
	Input voltage	3 phase 220V /440V /480V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

FAQ

How efficient is a 3-phase vfd inverter?

The efficiency of a 3 phase inverter refers to the ratio of the output power to the input power in the process of converting DC power into AC power, usually expressed as a percentage. This efficiency is affected by many factors, such as input voltage, output power, operating temperature, load current, load characteristics and topology.
The efficiency of a 3 phase solar inverter is usually between 85% and 98%, and the specific value depends on the technology and quality of the 3 phase variable frequency drive design, input voltage, output power, operating temperature, load current, load characteristics, topology, and other factors.
In practical applications, to improve the efficiency of the three phase solar inverter, it is necessary to select a suitable input voltage and output power range, avoid high temperature environment, and optimize load characteristics and topology.
To improve the efficiency of a high efficiency three-phase inverter, a series of measures can be taken, such as selecting a suitable input voltage and output power range, avoiding a high-temperature environment, and optimizing load characteristics and topology. In addition, advanced control strategies and technologies, such as maximum power point tracking technology and soft switching technology, can also be used to further improve the efficiency of the inverter.
