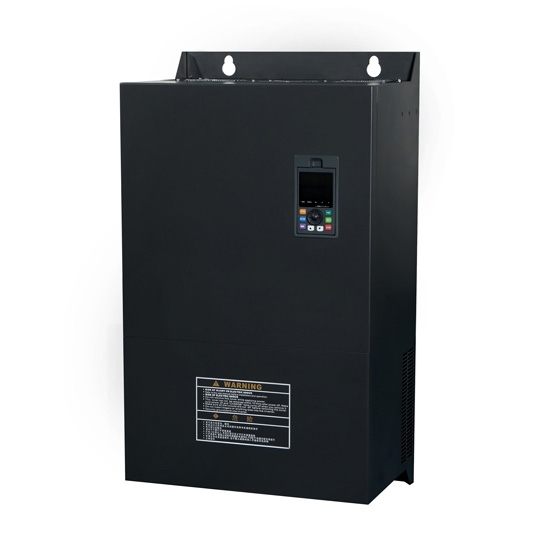

90 kW Frequency Inverter, 3 Phase 230V, 400V, 460V

$3,741.60

| 1 review(s) | Add your review

90 kW 3 phase inverter 230V, 400V, 460V, IP 20 enclosure rating, V/F control mode, 5%-95%, without condensation. The 3 phase variable frequency inverter with input frequency 50Hz / 60Hz has good performance, such as overcurrent protection, overvoltage protection, and undervoltage protection. The variable frequency inverter usually applies for electric vehicles, power generation, marine, and aerospace.

Free shipping

Delivery date: 3-10 days

SKU: GK3000-4T0900G

Input Voltage (Three Phase) ±15% *

increase decrease

Overview
Specs
FAQ
Reviews

Overview

90 kW (125 hp) frequency inverter, three phase 220V /415V /480V AC ±15% input and 3 phase AC 0~input voltage output. Come with an intelligent cooling fan and digital display, 3 phase variable frequency drive usually applies in motor drives, renewable energy systems, and uninterruptible power supplies.

Feature

90 kW variable frequency inverter comes with an IP 20 protection rating and works at (–10℃, 40℃).
Automatic voltage regulation of frequency inverter can keep constant output voltage when power source voltage varies.
Equipped with an electronic display, the frequency drive inverter's parameter can be adjustable in real-time.
High frequency inverter with forced cooling fan has frequency precision, digital setting: max frequency x± 0.01%;
analog setting: max frequency x± 0.2%.

Details

Multiple Function Keyboard

The multiple-function keyboard of frequency phase inverters control the operation of the 90kw variable frequency drive inverter, such as start, stop, and acceleration. The user can press the corresponding buttons to make the 3 phase motor inverter work according to set 100 hp frequency inverter parameters or control the 3 phase inverter machine's operating speed.

Electronic Screen

The electronic screen of the 125 hp frequency inverter is a key component in the three phase inverter control system, providing users with an intuitive and real-time information display. The digital screen can monitor the operating status of the 100hp frequency inverter in real-time, including input and output voltage, frequency, and current waveform, which helps to detect abnormal conditions in time.

Rugged Casing

The variable frequency drive inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The frequency drive inverter not only protects the internal circuits and components but also provides safety protection.

Applications

Car Manufacturer

Ship Operation

Energy Generation

Building Construction

Specs

Basics	Model	GK3000-4T0900G/GK3000-2T0900G
	Capacity	90 kW (125 hp)
	Shipping weight	50 kg
	Dimension	618398306 mm
I/O Feature	Rated current	176A at 380V ~ 480V, 380A at 220V ~ 240V
	Input voltage	3 phase 220V /415V /480V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

FAQ

What are the three-phase inverter control techniques?

Pulse width modulation (PWM) techniques: PWM is a widely used method to control the output voltage and frequency of 3 phase variable frequency drives by adjusting the width of the pulses in a switching pattern.
Field-oriented control (FOC): FOC, also known as vector control, is a method used to control the torque and speed of three-phase AC motors (like induction and permanent magnet synchronous motors) by controlling the stator currents in a coordinate system aligned with the rotor flux.
Direct torque control (DTC): DTC is another method primarily used for controlling AC motors, particularly induction motors. Unlike FOC, DTC directly controls the motor's torque and flux without the need for coordinate transformations.

Write your own review

Review title: *

Review text: *

Rating:

1 2 3 4 5

Existing reviews

Operating temperature of frequency inverter

If I'm going to use a 7.5 hp 230v 3 phase motor and the input is 240v single phase, will the 7.5 frequency inverter be sufficient or will I need to upsize frequency inverter. It will be installed in a garage, so it will have to deal with the summer heat and cold winter ambient temperature.

From: Toni Toni | Date: 10/12/2021 1:39 AM

Was this review helpful? Yes No (0/0)

Responded by inverter.com

Generally, make 15% oversizing. And our frequency inverter temperature range: –10℃~ +40℃; frequency inverter will be derated if ambient temperature exceeds 40℃; each rise 1℃, the derate will be 5%.
