Portable Small Solar Power Generator, 50W/100W Solar DC System

$613.61

PRICE BREAKS - The more you buy, the more you save

Quantity

10+

50+

Discount

3% OFF

4% OFF

5% OFF

| 6 review(s) | Add your review

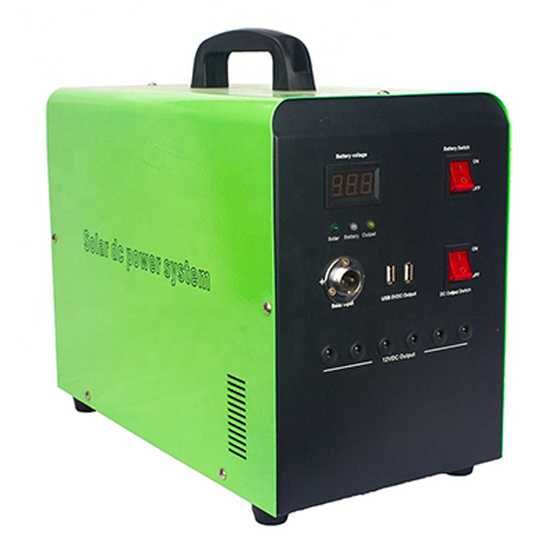

Small solar power generator for sale online, system has a 12VDC and 5VDC output terminal, powerful solar generator peak power 50 watt or 100 watt, unique reverse connection prevention, 100 watt solar generator with an efficient PWM charge mode.

Free shipping

Delivery date: 7-10 days

SKU: ATO-DL-50

Power *

increase decrease

Overview
Specs
FAQ
Reviews

Overview

50w / 100w DL small solar generator has a built-in battery and built-in solar controller, SCM intelligent control, 100 watt solar generator with a PWM charge mode, a longer life contributed by automatic control modes, solar-powered generator for RV or home use.

Feature

SCM intelligent control and optimization SOC algorithm.
Solar generator built-in temperature sensor which can improve charge efficiency of the built-in battery effectively.
Energy solar generator with full-automatic control such as overcharge protection, over-discharge protection, electronic circuit short circuit protection, overload protection, and unique reverse connection prevention.
A serial-connection PWM charge main circuit makes voltage loss of the charge circuit less than that of the charge circuit of a diode by nearly half and the charge efficiency 3% to 6% higher than a non-PWM charge main circuit and increases the time of power consumption.
Solar power generator has a longer life contributed by automatic control modes including boosting charge for recovery from over discharge, normal direct charge, and floating charge.
Visualized display of the system status by nixie tube and LEDs.
User solar power supply. Photovoltaic water pumps solve the deep water without electricity and drinking, and irrigation; Solar water purifiers can solve the problem of drinking water and purifying water quality in areas without electricity.
Communications field. Solar unattended microwave relay station, optical cable maintenance station, broadcast/communication/paging power supply system, small communicator.
Home lighting power supply. Such as street lamps, hand lamps, garden lamps, energy-saving lamps, etc.
Others. Solar car/electric car, ventilator fan; power supply for desalination equipment; satellites, spacecraft, space solar power plants.

Application of solar power system

Applications

Outdoor Camping

Outdoor Picnics

Travel and Hiking

Electric devices charging

Specs

Model	ATO-DL-50
Solar panel
Type	Monocrystalline silicon or polycrystalline silicon panel of class A
Power	50W	100W
Dimensions (mm)	176279288	213300383
Solar controller
Control mode	Efficient PWM
Charge current	10A / 12V
Protection functions	Overcharge protection, over-discharge protection, electronic circuit short circuit protection, overload protection
Voltage of overcharge protection	14.3V
Voltage of boosting protection	14.0V
Voltage of floating protection	13.8V
Voltage of overdischarge protection	10.5V
Display of nixie tube	Current voltage of the battery
Indication of LEDS	Charge indication, load indication, and battery indication
Battery
Battery type	Deep-cycle maintenance-free lead-acid battery
Battery capacity	50AH	100AH
DC output
Maximum output power	120W (12V / 10A)
12V DC	5 output ports	6 output ports
USB (5V DC)	2 USB output ports (MAX.3A)
Accessories included
12V DC LED indicator	Two 3W LEDs and two 5W LEDs (including 4 lamp holders, two 3M lamp wires and two 5W lamp wires)
USB charge line	A universal charge line
Solar panel bracket	A set (including 2 pieces)
Electric wire of the solar panel	5M
AC charger	An optional accessory when there is no solar power supply and charging by mains supply
Certificate	CE
Warranty	1 year

FAQ

What is a solar generator?

A solar generator is a power generation device that generates electricity by shining sunlight on a solar panel and can power various devices.

Basic principle: Solar generators use the photoelectric effect of semiconductor materials to convert solar energy into electrical energy. When light shines on a solar panel, photons with sufficient energy can excite electrons to jump out of covalent bonds to form electron-hole pairs. These electrons and holes move to the N region and the P region respectively under the action of the electric field, thereby forming a voltage between the P region and the N region. Through an external circuit, these voltages can drive the flow of current and generate electrical energy.
Composition structure: The solar cell module is responsible for converting solar energy into electrical energy. The charge and discharge controller is used to control the charging and discharging process of the battery to prevent the battery from being overcharged or over-discharged. Solar inverter (equipped with some models) converts the DC power generated by the solar panel into AC power to meet the power needs of different devices. Battery is used to store the electricity generated by the solar panel to provide power when there is insufficient or no light.
