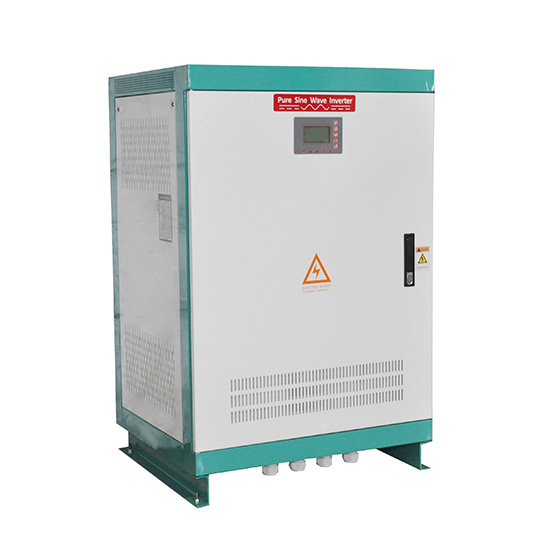

100kW Pure Sine Wave Off Grid Solar Inverter

$34,909.09

| 1 review(s) | Add your review

3 phase 4 wire power inverter is a pure sine wave off grid inverter with low price. This solar power inverter with low frequency 50Hz/ 60Hz, 100kW high power output rating, no battery storage system, transforms 480V DC to 400V/ 460V AC (input and output voltage are customizable), high efficiency and stable performance. 100 kW off grid pv inverter is widely used in CNC machine, emergency car and compressor.

Delivery date: 6-12 days

SKU: ATO-OGI-100kW

DC Input Voltage *

AC Output Voltage (3-phase) *

Output Frequency *

Add AC Input

Yes [+$943.22]

Add RS485 Interface

Yes [+$135.18]

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

Low cost three phase 4 wire 50Hz/ 60Hz high quality off grid inverter for sale, two kinds of start mode: Step-down voltage start and variable frequency start. 80kW pure sine wave inverter, wide DC input voltage, can work without battery and solar charge controller, which saves battery cost and its MPPT function can maximum make use of solar power. Off grid pv inverter is designed to withstand a variety of environmental conditions and provide reliable performance over time.

Features:

Two kinds of start modes: Step-down voltage start and variable frequency start. Customers can set start mode according to the type of their load.
The output voltage can be set between -40 % to +20 % of the rated voltage. And the output voltage with an accuracy ±1%.
Pure sine wave output. With a good dynamic response of less than 50MS, the waveform distortion rate is smaller, with higher conversion efficiency and stable output voltage.
Adopts a black pure aluminum radiator, which confirms the best radiating performance.
Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, power consumption (kWH), time and date, temperature, and fault code display.
Wide input voltage can work without battery and solar charge controller, save more cost, and with MPPT wide voltage input function, maximum use of solar power.

Details:

Black Oxide Heat Sink

Used thickened aluminum heat sink improve radiation rate cooling surface is stable and not easy to oxidize, black coating does not interfere with electrical conductivity. This results in better cooling and a longer lifespan for the 100kW off grid power inverter. The black finish can improve the overall appearance of the inverter and make it blend more seamlessly with other components.

Powerful Cooling System

A powerful cooling system enhances the safety, durability. It helps maintain optimal operating temperatures, ensuring the grid off power inverter runs efficiently and effectively. This cooling system prevents overheating, which can lead to equipment damage and failure. Additionally, a well-cooled inverter can handle higher loads without risking performance degradation.

Anti-dust Protection

Reasonable cabinet design with dust-proof net to reduce dust, prevent accidental touch and improve safety performance. Anti-dust features enhance the reliability of the off grid pv inverter, minimizing downtime and maintenance needs. This protection maintains efficiency by keeping internal components clean and functioning optimally, ensuring stable power conversion.

Applications:

Home Use

Remote Location

Off Grid Solar System

CNC Machine

Specs

Model		ATO-OGI-100kW
Size (DWH)		9008001200mm
Weight		750kg
Certificate		CE, UL, SA, SAA, VDE
Warranty period		24 months
AC Input	Rated voltage	AC input voltage is the same value as the AC output
DC Input	Rated voltage	240V/ 300V/ 360V/ 480V DC (can be customized)
	Rated current	208A @480V DC
AC Output	Rated output power	100kW
	Output waveform	Pure sine wave
	Rated voltage	208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 460V/ 480V (optional)
	Phase	3 phase 4 wire+PE wire (single phase/ split phase can be customized, please contact us by email)
	Rated phase current	152A @380V AC
	Frequency	50Hz or 60Hz
	Power factor	>0.99
	Overload ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate	THD<3%
	Dynamic response (0 to 100% load)	5%, ≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1min
	Communication interface	RS485 (optional), can remote control the start/stop of the inverter and convey the data as below: 1. Input DC current 2. Input DC voltage 3. Output AC current 4. Output AC voltage 5. Power consumption (kWH) 6. Some fault information
	Battery charging function	Can be customized, please contact us
Protection Function	Protection	Input reverse polarity, under voltage, over-voltage, output over-current, short circuit, overheating
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working Environment	Noise (1 meter）	≤50dB
	Degree of protection	IP20 (indoor)
	Working altitude	≤2000m
	Working temperature	-25~+55℃
	Relative humidity	0~90%, non-condensing
Note	The above parameters are for reference only, and can be customized according to the customer's requirement!

Manual

Off Grid Solar Inverter Catalog

FAQ

What are the important points of solar inverter installation and maintenance?

Before installation, you should first check whether the solar inverter is damaged during transportation.
When selecting the installation site, it should be ensured that there is no interference from any other power electronic equipment in the surrounding area.
Before making electrical connections, be sure to cover the DC side circuit breakers with opaque materials. When exposed to sunlight, the PV array will generate dangerous voltages.
All installation operations must be performed by professional technicians only.
The cables used in the photovoltaic power generation system must be firmly connected, with good insulation and appropriate specifications.
All electrical installations must meet local and national electrical standards.
The inverter can be connected to the grid only after obtaining the permission of the local power department and all electrical connections are completed by professional technicians.
Before performing any maintenance work, first, disconnect the electrical connection between the inverter and the grid, and then disconnect the DC side electrical connection.
Wait at least 5 minutes until the internal components are discharged before performing maintenance work.
Any fault that affects the safety performance of the inverter must be eliminated immediately before the solar power inverter can be turned on again.
Observe the static protection regulations and wear an anti-static wrist strap.
Visually inspect the equipment for damage or other dangerous conditions before operation.
Pay attention to the hot surface of the solar inverter. For example, a heat sink of a power semiconductor or the like maintains a relatively high temperature for a period of time after the inverter is powered off.

Write your own review

Review title: *

Review text: *

Rating:

1 2 3 4 5

Existing reviews

I want to know some information about off-grid solar inverter

1. On detection of an AC Input. Does your pure sine wave inverter charge the battery bank and also transfer the AC input directly to it's load terminal (its AC output).
2. Does your pure sine wave design have a selective or fixed (depth of discharge) DOD protection setting? If it has any, please know what its DOD protection value/percent.
The above were not stated in your specification and user manual. I am messaging you from Nigeria, where I lack consistent power supply.

From: Ldrabbit Ldrabbit | Date: 9/8/2021 7:22 PM

Was this review helpful? Yes No (0/1)

Responded by inverter.com

1. Yes, our off-grid solar inverter can be customized with AC charger function, and it can charge the battery pack and transmit AC input directly to its load terminal.
2. Our off-grid solar inverter has under-voltage and over-voltage setting protection function, which can be set according to your requirements. Also, you can tell us about your specific setting requirements.
