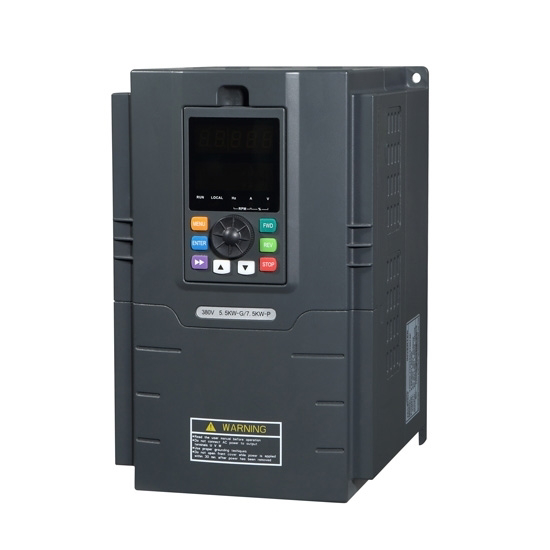

5.5 kW Frequency Inverter, 3 Phase 230V, 380V, 460V

$415.08

| 4 review(s) | Add your review

5.5 kW variable frequency drive inverter, input voltage 3 phase 208V /380V /480V AC ±15% can be optional, and output voltage 3 phase AC 0~input. With V/F and sensorless vector control, 3 phase inverter can work at (–10℃, 40℃), RS485 communication mode, and IP20 enclosure rating. 7.5 hp three phase inverter is widely used for three phase asynchronous motors.

Free shipping

Delivery date: 3-10 days

SKU: GK3000-4T0055G

Input Voltage (Three Phase) ±15% *

increase decrease

Overview
Specs
FAQ
Reviews

Overview

7.5 hp frequency drive inverter, 3 phase 230V, 380V, 460V, with V/F or sensorless vector control. Come with RS485 communication mode and IP20, 5.5 kW inverter rated current is 13A at 380V ~ 480V, 25A at 220V ~ 240V. It is usually applied in machine tools, pharmaceuticals, chemicals, cranes, mixers, etc.

Feature

The frequency drive inverter with sensorless vector control (SVC), RS485 communication and an intelligent cooling fan, the optimized low frequency torque boost.
Adopt circuit protective technologies and new components, improving the anti-interference ability of the 3 phase inverter.
Preset frequency, the adjustable central frequency for swing frequency control, built-in PLC, or Terminals implement muti-speed operation.
Equipped with a multiple-function keyboard, the variable frequency drive inverter has led to show data in real-time.

Details

Multiple Function Keyboard

The multiple-function keyboard of the variable frequency inverter controls the operation of the 5.5kw variable frequency drive inverter, such as start, stop, and acceleration. You can press the corresponding buttons to make the three phase variable frequency drive work according to the set inverter parameters or control the inverter machine's operating speed.

Electronic Screen

The electronic screen of the frequency drive inverter is a key component in the control system, providing users with an intuitive and real-time information display. The electronic screen can monitor the operating status of the 5.5kw variable frequency drive inverter in real-time, including input and output voltage, and current waveform, which helps to detect abnormal conditions in time.

Rugged Casing

The 7.5hp variable frequency inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The 3 phase variable frequency drive not only protects the internal circuits and components but also provides safety protection.

Applications

Car Manufacturer

Ship Operation

Energy Generation

Building Construction

Specs

Basics	Model	GK3000-4T0055G/GK3000-2T0055G
	Capacity	5.5 kW (7.5 hp)
	Shipping weight	6.5 kg
	Dimension	280181183 mm
I/O Feature	Rated current	13A at 380V ~ 480V, 25A at 220V ~ 240V
	Input voltage	3 phase 208V /380V /480V AC ±15% (Optional)
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:＜5.9m/s2 (0.6g); Transportation:＜15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

FAQ

What are the advantages of a 3 phase frequency inverter?

Superior speed regulation performance: The vfd inverter 3 phase can achieve smooth speed regulation of the motor, with a wide speed regulation range and high-speed regulation accuracy. This superior speed regulation performance can meet many complex and precise control requirements, making industrial production and mechanical operation more stable and efficient.
Easy to achieve automation and intelligent control: The three-phase frequency drive inverter can be combined with automation equipment such as PLC and touch screen to achieve automation and intelligent control. This can greatly improve production efficiency and product quality while reducing operation difficulty and labor costs.
Wide range of applications: The 3 phase variable frequency drive is suitable for various types of three-phase motors, including asynchronous motors, synchronous motors, etc. At the same time, it can also be applied to various industries and fields, such as machinery manufacturing, petrochemicals, metallurgy and mining, textile printing and dyeing, etc.
Easy maintenance: The three-phase frequency drive inverter usually has perfect protection functions, such as overcurrent, overvoltage, undervoltage, and other protections, which can reduce equipment failures and maintenance costs. In addition, its debugging and parameter settings are usually simple, which is convenient for users to maintain and operate.

Write your own review

Review title: *

Review text: *

Rating:

1 2 3 4 5

Existing reviews

Easy to programme function

I have this frequency inverter to run my three-phase motor. The 5.5kw inverter works perfectly with the default settings. Very easy to program function. Works as described. The drive delivers enough torque to the spindle at any speed.

From: paz everly | Date: 9/20/2024 2:21 AM

Was this review helpful? Yes No (0/0)

Recommended this 3 phase frequency inverter for any industrial application

I've been using the 3 phase 5.5kw frequency inverter for several months, and it has significantly improved our operations. Installation was straightforward, thanks to the clear instructions and well-designed interface. The unit is robust and handles varying loads without any issues. I've also noticed a reduction in energy consumption, which has been a nice bonus!

From: Mavis Barnard | Date: 6/19/2024 2:51 AM

Was this review helpful? Yes No (0/0)

Provide reliable support

The three-phase 380V 5.5kW frequency converter has improved our fan system. Its stability and efficiency are impressive and provide reliable support for our production.

From: Liam zhao | Date: 10/31/2023 1:16 AM

Was this review helpful? Yes No (0/0)

Questions about frequency inverter

Will your GK3000-1S0022 frequency inverter handle both 1-phase and 3-phase motors?

From: Kaleb Kaleb | Date: 12/14/2021 1:55 AM

Was this review helpful? Yes No (0/0)

Responded by inverter.com

Yes, that is our new generation.
